Driven Piles Foundation: High-Capacity Deep Foundation Solutions

When your commercial or industrial project demands maximum load-bearing capacity under extreme conditions, surface-level soils simply won’t cut it. As a leading Northeast structural contractor, SJ Hauck Construction delivers deep foundation services including engineered driven piling systems designed to penetrate the toughest strata and anchor your superstructure directly to competent bedrock or load-bearing soil layers.

Driven piles remain the industry gold standard for high-capacity engineering, offering unmatched structural rigidity, deep penetration, and immediate, real-time load-bearing verification.

Contact Our Team

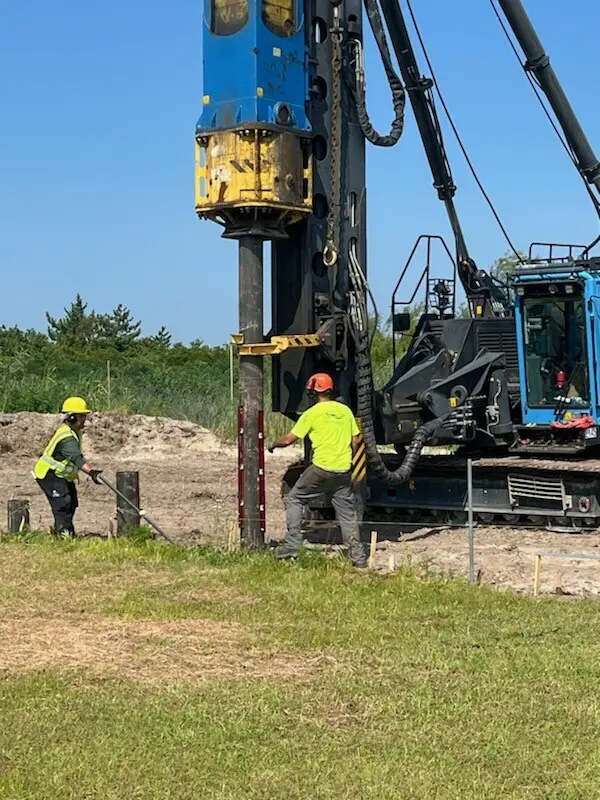

A close-up view of a large blue and yellow pile driving rig installing a steel foundation pile into the ground, while two construction workers wearing hard hats and high-visibility safety vests monitor and guide the operation on a grassy job site.

Our Driven Piling Capabilities

At SJ Hauck, we don’t guess how structures behave under pressure—our heritage in structural moving and lifting means we understand load paths better than anyone in the business. We mobilize specialized impact and vibratory equipment to install high-performance driven piles tailored precisely to your site’s specific geotechnical profile and structural demands.

Whether your project requires managing massive compression, tension, or lateral loads, we deliver a seamless, code-compliant installation built for long-term structural viability.

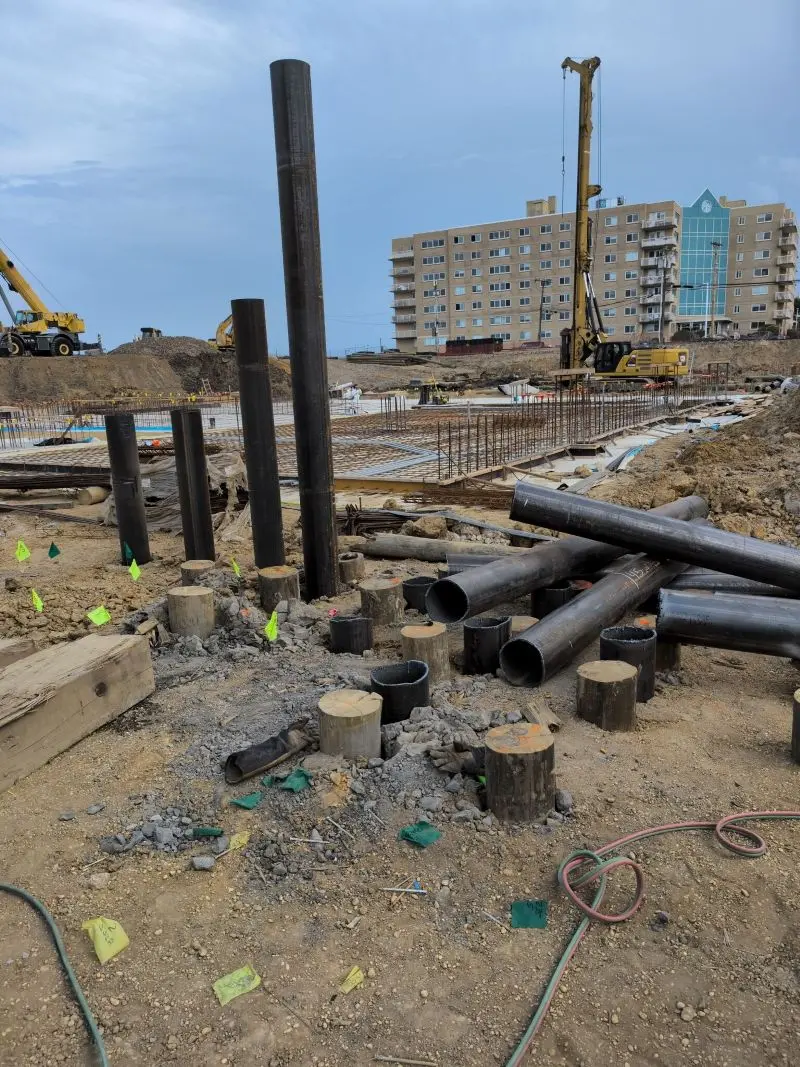

A busy commercial foundation construction site featuring several tall, vertical steel pipe piles and short wooden piles driven into the ground, with loose steel pipes scattered nearby, rebar grids laid out for a foundation, and heavy machinery, including an excavator and a crane, operating in front of a multi-story building under a cloudy sky.

1. Steel Piles

Best suited for heavy industrial facilities, bridge abutments, and high-capacity infrastructure where massive load performance is non-negotiable.

  • Extreme Load Performance: Can be driven open-ended to cut through thin rock layers or closed-ended to displace specific soil types. Steel piles handle immense driving stresses without compromising structural integrity.
  • Enhanced Rigidity: When filled with concrete, steel pipe piles provide immense compressive strength and exceptional lateral stiffness. (For harsh groundwater or marine exposure, we integrate advanced corrosion protection solutions).
  • Deep Penetration: Capable of reaching depths of over 200 feet to lock into competent bearing strata. Lengths are seamlessly spliced or cut in the field to adapt to real-time subsurface demands.

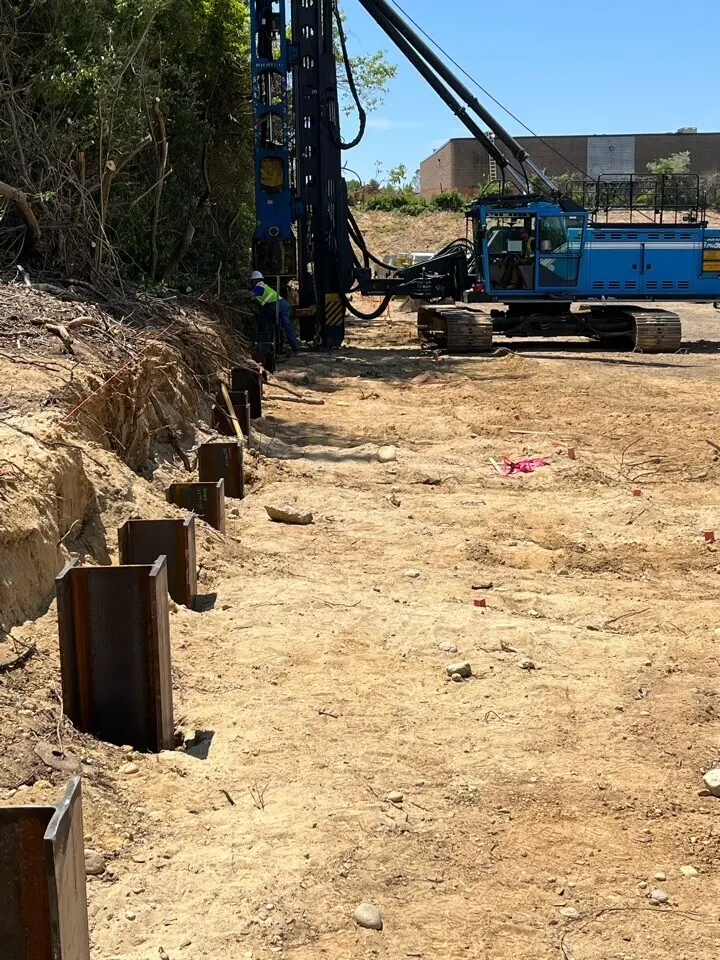

A row of heavy steel H-pile foundation beams driven vertically into the ground along a dirt embankment, with a large blue tracked pile driving rig operating in the background on a sunny day.

2. H-Piles

Engineered to withstand the most punishing environmental conditions and brutal installation environments.

  • Obstruction Piercing: Designed as heavy-duty, end-bearing piles that surgically pierce through dense debris, cobbles, and boulders to establish a permanent footprint on solid bedrock.
  • Low Soil Displacement: The specialized “H” cross-section minimizes ground heave, ensuring that the driving process won’t lift, shift, or damage adjacent slabs or historic footings in tight, dense urban environments.
  • Seismic Resilience: The premier choice for high-seismic zones requiring maximum structural rigidity under extreme lateral forces.

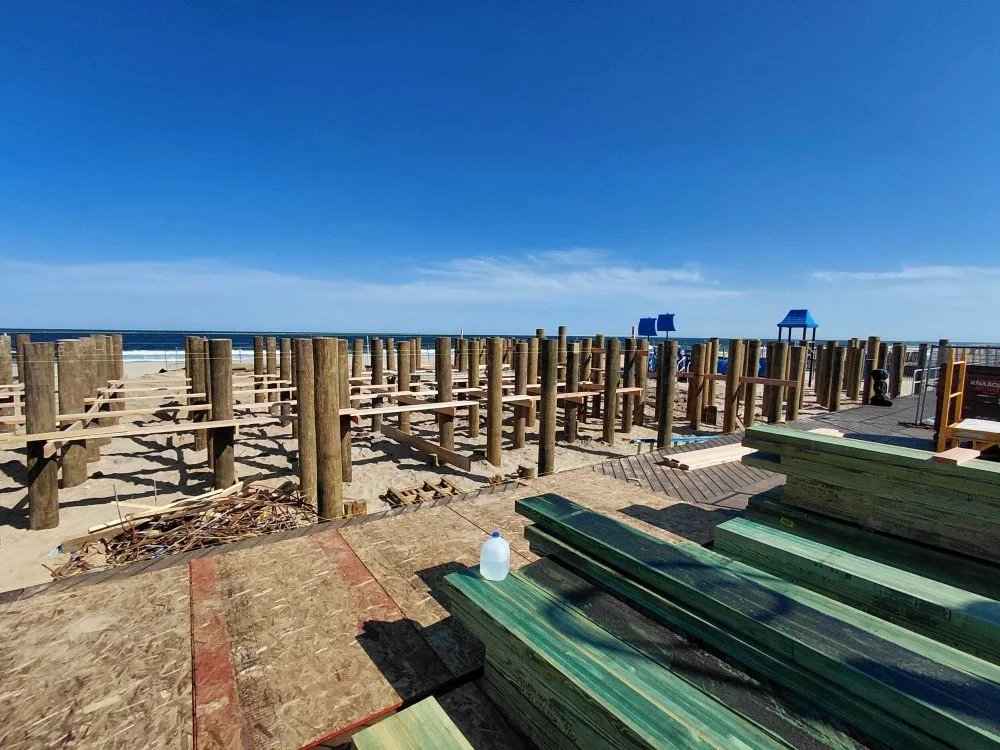

A wide construction site view on a sandy beach featuring a grid of thick wooden foundation pilings driven into the sand and connected by structural framing, with stacks of green treated lumber and plywood in the foreground under a clear blue sky.

3. Timber Piles

A highly cost-effective, time-tested driven solution optimized for specific environmental and soil conditions.

  • Friction-Based Support: Ideal for consistent, cohesive soils where the piles achieve excellent “freeze” or soil setup, dramatically increasing load capacity over time.
  • Centuries of Durability: When treated with modern preservatives and permanently submerged below the groundwater table in anoxic conditions, timber piles resist biological degradation indefinitely.
Construction site with sand and concrete pilings in the ground, surrounded by fencing and buildings in the background.

4. Concrete Piles

Engineered for massive, long-term structural loads in highly corrosive environments and coastal zones.

  • Impact Resistance: Placed in a permanent state of compression during manufacturing, these precast piles easily withstand the immense stresses of impact driving and bending.
  • Aggressive Marine Applications: The absolute premier choice for saltwater splash zones, ports, and coastal infrastructure, offering unmatched resistance to marine degradation.
  • Field Durability: While heavier and requiring more precise handling than steel, concrete piles deliver unparalleled, permanent axial stiffness.

Technical Selection Matrix: Driven Piling Systems

Site conditions and environmental surroundings always dictate our installation methods. Because impact hammering generates significant noise and vibration, our team utilizes early involvement and value engineering to select the right system—ensuring minimal disturbance to adjacent structures in dense urban areas.

Pile System Installation Method Noise/Vibration Level Typical Depth Range Key Engineering Differentiator
Steel Pipe Piles Impact or Vibratory Hammer High 40' – 200'+ Can be driven "open-ended" to slice through thin rock strata.
H-Piles Impact Driving Moderate 40' – 200'+ Minimal ground heave; eliminates risk to adjacent historic foundations.
Prestressed Concrete Impact Driving High 30' – 100' Highest axial stiffness; unbeatable for saltwater splash zones.
Timber Piles Impact or Vibratory Hammer High 20' – 60' High "setup" (freeze) potential in silty/clay soils over time.

The Driven Pile Advantage

Cost-Effective Displacement Technology

Unlike bored or cast-in-situ piles, driven piles are manufactured off-site to exact engineering standards. Because they are forced into the ground, they naturally displace and densify the surrounding soil matrix, significantly improving overall bearing capacity.

Rigorous Capacity Verification

With SJ Hauck, there is no guesswork. We bring surgical precision to quality control. The load-bearing capacity of our driven piles is verified in real time through precise blow count monitoring and high-strain Pile Dynamics Analysis (PDA) testing. We ensure absolute compliance with all local codes, engineering specifications, and load-path demands before the first vertical block is ever laid.

Northeast Regional Expertise & National Mobilization

The geology of the Northeast corridor demands specialized engineering. From the sandy, high-water-table soils of Long Island and the Jersey Shore to the unpredictable bedrock depths of the Appalachian foothills in Pennsylvania, we adapt our driven pile configurations to match local constraints seamlessly.

Our systems routinely support high-rises, bridges, river piers, ports, and heavy industrial facilities. Furthermore, we strictly adhere to all regional legal mandates, including the NYC Administrative Code and the New Jersey Uniform Construction Code ensuring adjacent structures are fully protected and monitored whenever excavations impact existing foundations.

Have a complex, massive industrial project outside the Mid-Atlantic? We possess the asset strength and organizational structure to mobilize nationwide, transporting our specialized heavy rigs and deep foundation expertise directly to your site. We will need to know more about your project to determine scope and cost!

Ready to Support Your Next Project

Don’t trust your foundation to generalists. Partner with the specialists who understand exactly how structures behave under pressure. Connect with an SJ Hauck structural expert today for a detailed, transparent proposal.
