The Importance of Support of Excavation in the Northeastern US for Safe and Successful Construction
- SJ Hauck Construction
- 5 days ago
- 4 min read
In the bustling construction landscape of the Northeastern United States, Support of Excavation (SOE) plays a crucial role in ensuring the safety and success of construction projects. With urban areas rapidly expanding and infrastructure initiatives becoming more sophisticated, securing stable excavations is essential. This post explores the vital impact of SOE on construction safety, highlights common techniques used in the region, reviews regulatory requirements, and provides guidance on how to select the right excavation support services.
What is Support of Excavation in Construction?
Support of Excavation refers to the systems and methods that stabilize the walls of an excavation site. This stabilization prevents soil collapse, protects workers, and safeguards the integrity of nearby structures. Common techniques include shoring, bracing, and underpinning, all tailored to fit the specific conditions of an excavation site.
It's important to understand the significance of SOE. It directly affects both safety and the overall success of a construction project. The primary aim is to provide a safe working environment while minimizing risks related to soil movement and structural failures.
The Role of Support of Excavation in Construction Safety
SOE plays a multifaceted role in construction safety. Its main function is to protect workers from potential hazards associated with excavation sites. According to the Occupational Safety and Health Administration (OSHA), cave-ins rank among the top causes of fatalities in the construction industry. By implementing effective SOE measures, the risk of such life-threatening incidents can be drastically reduced.
In urban areas, SOE systems are vital for maintaining the stability of nearby structures. As a specific example, more than 50% of construction-related incidents involve structural damage to adjacent properties due to soil movement. Effective SOE helps avoid expensive delays and legal repercussions that can arise from such damage.
Common Methods and Techniques Used in the Region
In the Northeastern United States, several widely-used methods for Support of Excavation include:
Sheet Piling: Steel sheets are interlocked and driven into the ground, creating a barrier. This method is especially useful in areas with high groundwater levels, such as in New Jersey where groundwater tables can reach depths of 3 to 5 feet.

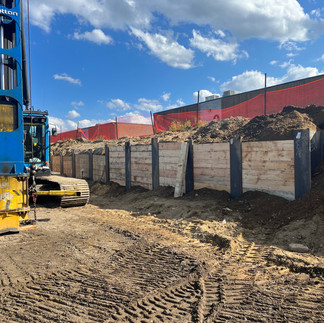

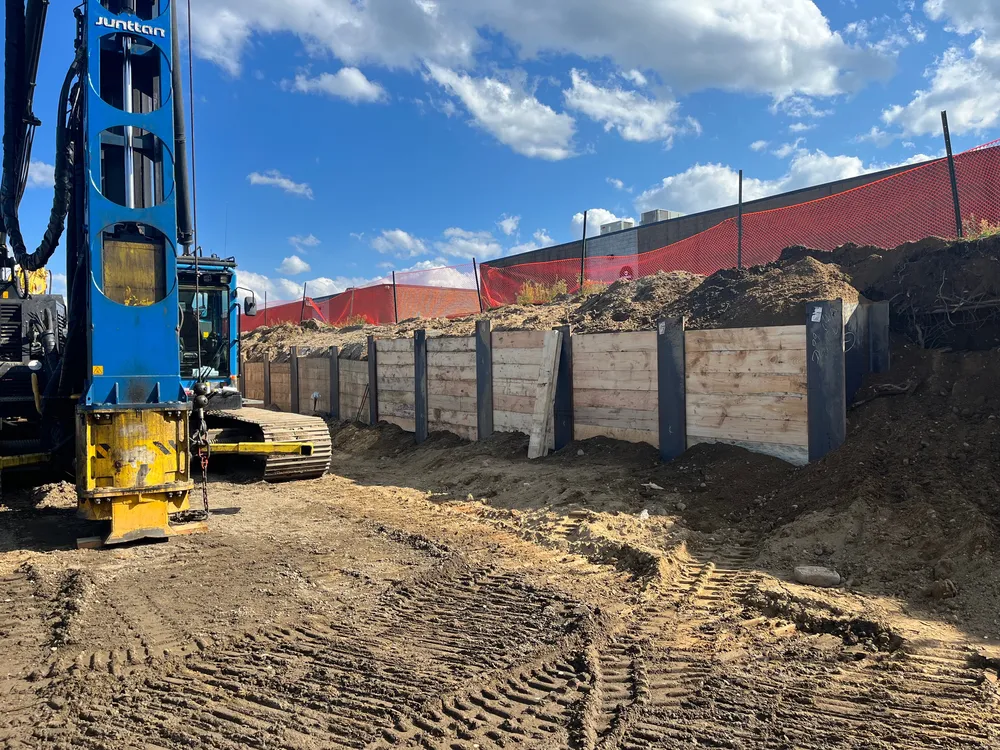

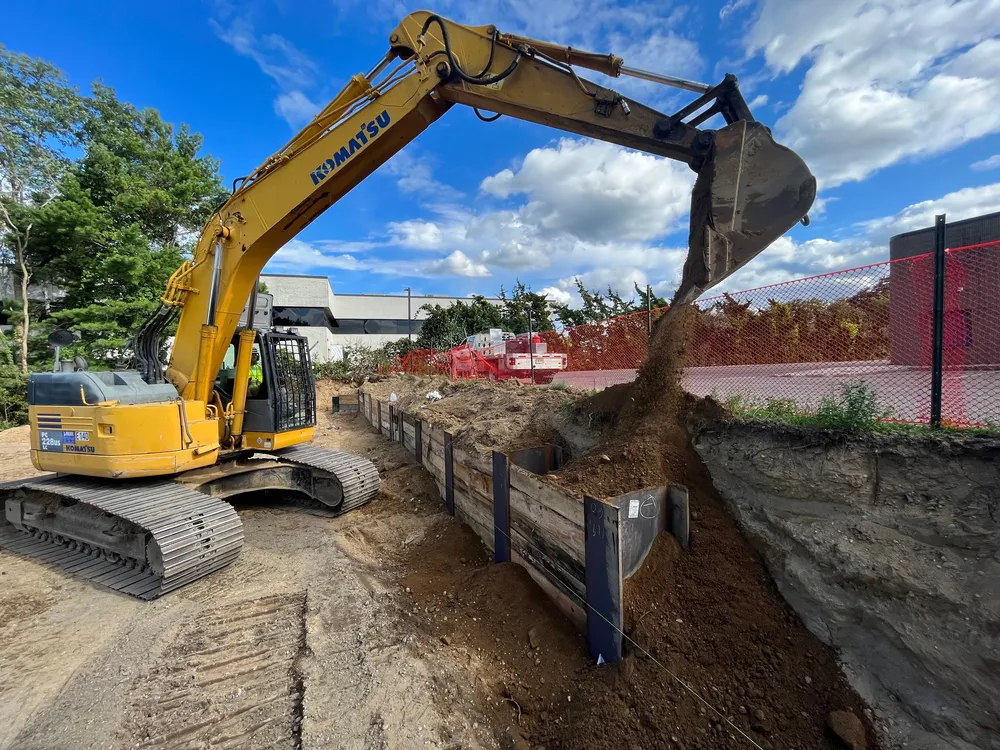

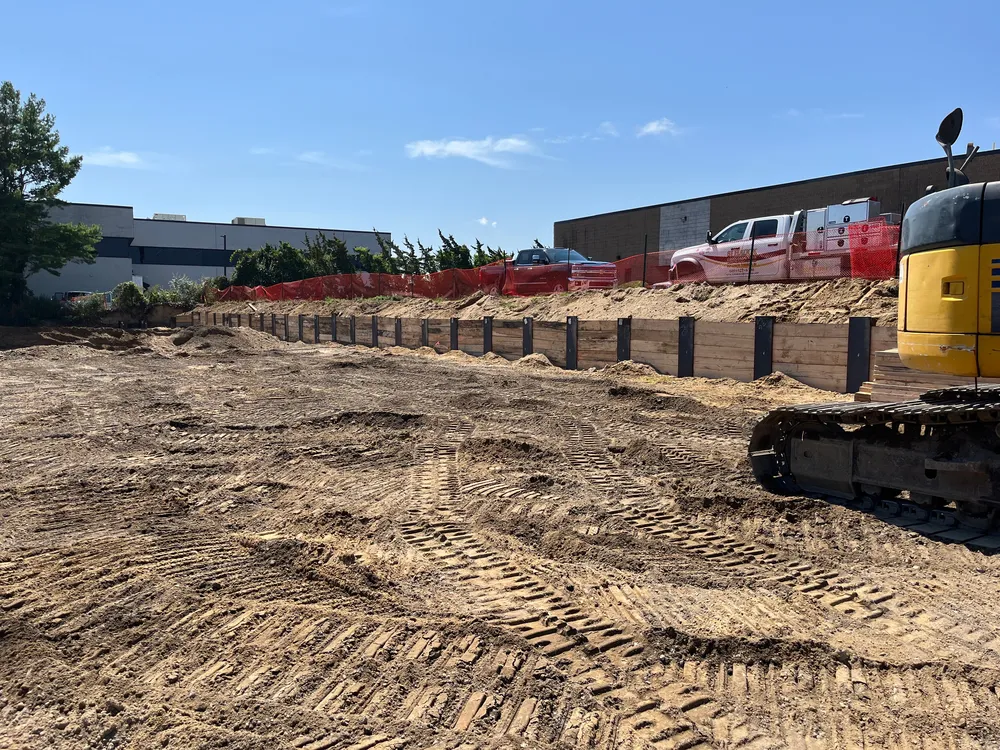

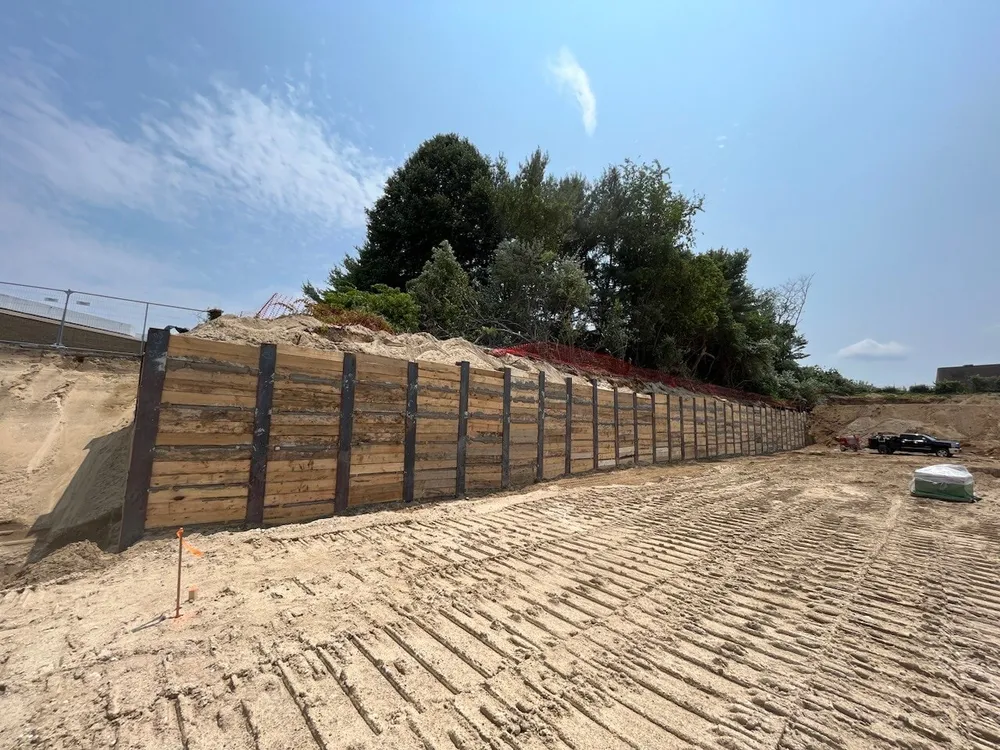

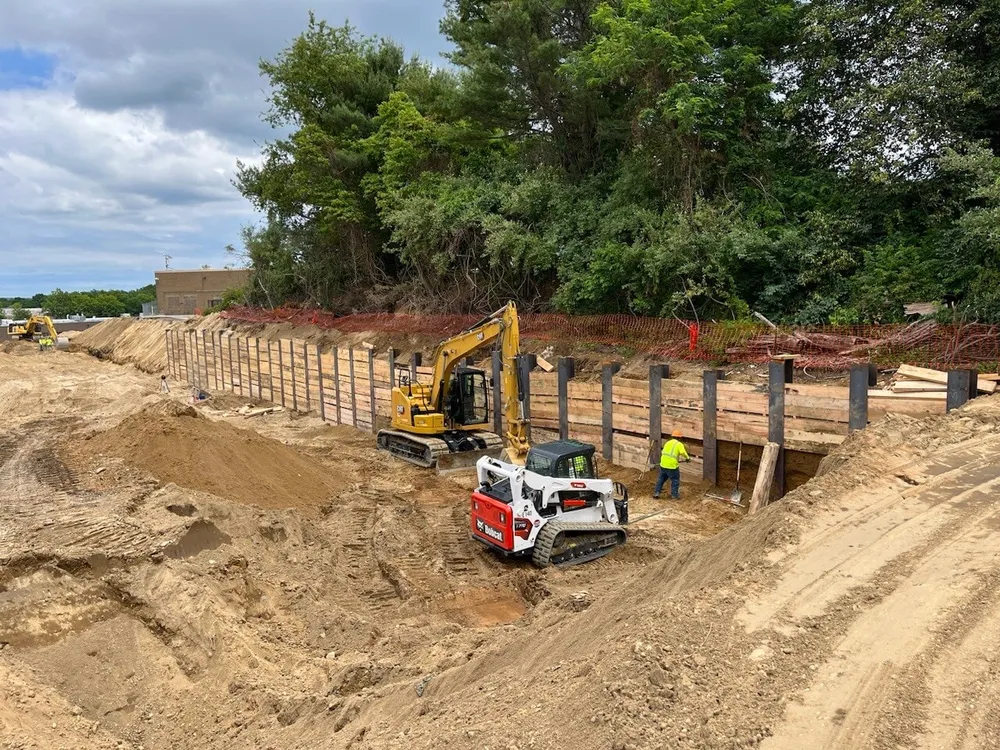

Soldier Piles and Lagging: Steel beams are vertically placed in the ground, with wooden or steel lagging used between them. This technique excels in urban settings with limited space. For instance, the method was pivotal in the construction of various subways in Boston.
Braced Excavations: Horizontal braces are used to support excavation walls. This technique can be temporary or permanent, depending on the project's needs.
Soil Nailing: Steel bars are inserted into the soil and grouted to provide stability. This is particularly effective in steep or unstable terrain, aiding projects like hillside road construction in Pennsylvania.
Each method is chosen based on factors such as soil type, depth of excavation, and proximity to existing structures, ensuring the most effective approach is used.
Regulatory Requirements and Best Practices
In the Northeastern US, OSHA primarily governs regulatory requirements for Support of Excavation. OSHA requires that all excavations deeper than five feet be properly supported to
prevent cave-ins. Specific requirements may differ by state and municipality, making it vital for construction professionals to stay updated on local regulations.
Best practices for implementing SOE include:
Conducting thorough site assessments to evaluate soil conditions and identify potential hazards.
Developing a comprehensive SOE plan that clearly outlines the chosen methods and materials.
Regularly inspecting SOE systems to ensure effectiveness throughout the excavation process.
Training workers about the importance of SOE and safe excavation practices.
By following these guidelines, construction companies can boost safety while minimizing risks associated with excavation work.
Examples of Successful Projects
Numerous successful projects in the Northeastern US demonstrate the importance of effective Support of Excavation. One notable case is the construction of the Second Avenue Subway in New York City. This extensive project required innovative SOE solutions due to its location in a crowded urban area filled with existing structures and utilities.
The construction team strategically employed both sheet piling and soldier piles, fostering a stable excavation environment. Routine inspections ensured that SOE systems operated effectively, resulting in the successful opening of the subway line in 2017—four years ahead of the projected timeline.
Another example is the Boston Convention and Exhibition Center expansion, which encountered significant challenges due to its waterfront location and proximity to pre-existing infrastructure. The project team implemented a detailed SOE plan that included soil nailing and bracing techniques to stabilize the excavation site. The project was completed on time and within budget, underscoring the effectiveness of proper SOE measures.
Choosing the Right Excavation Support Services
Selecting the right excavation support services is vital for construction project success. Here are some helpful considerations:
Experience and Expertise: Seek companies with a solid track record in SOE. Professionals with extensive experience can assess site conditions accurately and recommend suitable techniques.
Reputation: Investigate the company’s reputation within the industry. Client testimonials and previous case studies provide insight into their capabilities.
Regulation Compliance: Confirm that the service provider is knowledgeable about local regulations and OSHA requirements. Compliance ensures safety and reduces legal risks.
Technology and Innovation: Look for companies that embrace advanced technology and innovative techniques. This can improve efficiency and effectiveness in SOE solutions.
Safety Record: Assess the company’s safety history and commitment to a safe working environment. A strong focus on safety reflects a responsible service provider.
By carefully evaluating potential excavation support services, construction professionals can help ensure their projects are conducted safely and effectively.
The significance of Support of Excavation in the Northeastern United States is considerable. As construction projects become increasingly complex, effective SOE measures are more critical than ever. By understanding SOE's role in safety, familiarizing themselves with common methods, complying with regulations, and selecting the right support services, industry professionals can foster safer construction practices.
As the construction landscape evolves, staying informed about best practices and innovations in SOE will be crucial for the safety and stability of excavation sites. Prioritizing SOE enables construction companies to protect their workers, preserve existing structures, and achieve project success.
